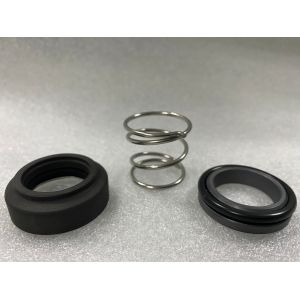

    Vulcan Type 9 Conical Spring Mechanical Seal For O Ring Mounted Water Pump

    Ask Lasest Price
    Brand Name : JR
    Model Number : LKH(P07-31.7)
    Certification : ISO9001
    Price : Negotiated
    Payment Terms : T/T, Western Union, L/C
    Supply Ability : 100000PC/Month
    Delivery Time : 20-30DAYS
    • Product Details
    • Company Profile

    Vulcan Type 9 Conical Spring Mechanical Seal For O Ring Mounted Water Pump

    Mechanical Seal Vulcan Type 9 Conical Spring Seal O Ring Mounted Water Pump Seal


    Operational Conditions:

    1. The Vulcan Type 9 is a rotor, which can be categorized as a conical spring rotor. It is an alternative to the Qseals QCS06, Vulcan 9, Burgmann M2 and 5 others. It is suited for the Speck Y-5081.0002.
    2. Temperature: -30°C to +150°C
    3. Pressure: Up to 12 bar (174 psi)

    Materials:

    • Stationary Ring: CAR,CER,SIC,SSIC
    • Rotary Ring: Q5, Resin Impregnated Carbon Graphite(Furan), SIC
    • Secondary Seal: FKM, NBR,EPDM
    • Spring and Metal Parts: 304/316

    Performance Capabilities

    vulcan type 912 mechanical seal
    Operational Condtions
    Size
    Material
    Temperature:
    -40℃ to 200℃ dependent on the elastomer
    32mm, 42mm,
    Face: Carbon, SiC, TC
    Pressure:Up to 25 bar
    Seat: Ceramic, SiC, TC
    Speed:Up to 20 m/s
    Elastomer:NBR, EPDM, FKM
    End Play /axial float Allowance:±1.0mm
    Other Metal Parts : SS304, SS316

    Conical spring, ‘O’-Ring mounted,shaft directional dependent seal, with a monolithic rotary head. Supplied as
    standard with Type 8 STD stationary to suit European non-DIN housing sizes. Simple but effective, economical design
    makes this seal suitable for a wide variety of lighter and general duty applications.The monolithic seal head provides
    enhanced heat dissipation away from the seal faces.

    Vulcan Type 9 Conical Spring Mechanical Seal For O Ring Mounted Water PumpVulcan Type 9 Conical Spring Mechanical Seal For O Ring Mounted Water PumpVulcan Type 9 Conical Spring Mechanical Seal For O Ring Mounted Water PumpVulcan Type 9 Conical Spring Mechanical Seal For O Ring Mounted Water Pump


    We are engaged in manufacture and installation exporting and wholesaling quality range of Industrial Seal, Single Spring Seal, Balance and Unbalance Spring Seal, External Mounted Seal, PTFE Bellow External Mounted Seal, Catridge Balance Seal, Multiple Spring Balance Seal, Dry Running Reverse Balance Seal, Agitator Double Acting Unbalance Seal, Single Conical Helical Spring, Rubber Bellow Seal, Multi Spring Seal, Metal Bellow Seal, Elastomer Bellow Seal, Conical Spring Seal, Air Condition Compressor Seal, Auto Cooling Seal, Metallic Bellow Seal,

    All ranges of mechanical seals for Flygt Pumps, Grundfos Pumps, Pumps, APV Pumps, Grindes Pumps, Fristam, ABS, Alleeiler, EMU, GEA

    Tunchenhagen, Godwin, Hidrostal, Hilge, Johnson, Lowara, Waukesha, Vogelsang Pumps etc.


    At the meantime, we could manufacture seals according to your sample or drawing, and design as your request,Customization: Changes of materials for getting other operating parameters are possible. Contact us with your requirements.


    Question 1: Are you a factory or a trade company?
    Answer: We are a factory and have our top sales for the trade service.


    Question 2: Can I try to get a SAMPLE before the order?
    Answer: Sure. You can ask for the samples. Usually they're free.


    Question 3: Where is your factory located? How can I visit there?
    Answer: Our factory is located in Ningbo, China. You can fly to Ningbo or Shanghai airport directly. All our clients, from home or abroad, are warmly welcome to visit us!


    Question 4: How does your factory do regarding quality control?
    Answer: Quality is priority. We always attach great importance to quality controlling from the very beginning to the very end. Our factory has gained ISO9001 authentication.


    Question 5: How about the lead time?
    Answer: Within10-20 days after getting the prepayment.


    Question 6: How can we pay?
    Answer: For small sample shipping cost, you can pay either by paypal or by T/T. And by T/T at sight for large amount of the order.


    Question 7: If OEM available?
    Answer: Yes, we provide all of our products OEM /ODM service.


    Question 8: If I can buy pumps or pump parts from your company?
    Answer: Yes , we also provide pumps and pump parts, such as Lobe pumps, Compound & homogeneous pumps, Homogeneous & emulsification pumps and so on
